EVACUATION SLED

Overview

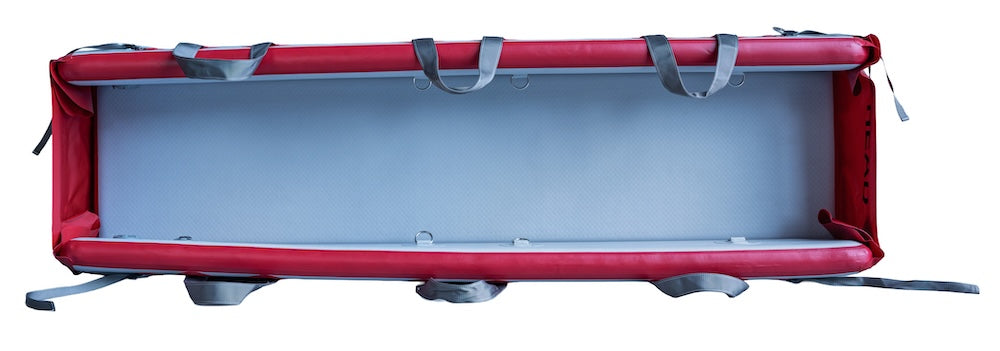

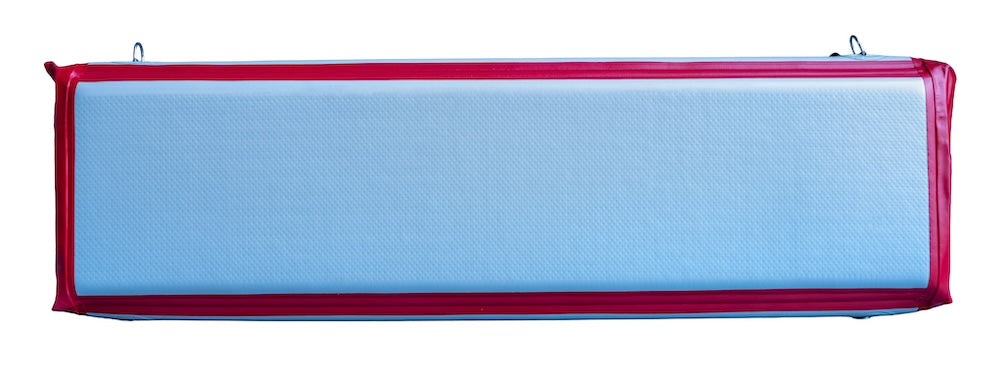

The Evacuation Sled has been developed to address the need for a small craft capable of evacuating people both injured and mobile victims from the flood water.  The Evac Sled is fully inflatable, pressured to 11 psi creating a solid fully floating platform.  The unique design allows the Evac Sled to be used as a flat mat or folded around the victim to create a dry craft.

The drop stitch design made from PVC provides excellent protection to persons being transported and is highly effective at extracting people from the water to a dry and safe environment.

REGISTERED DESIGN - INFLATABLE FOLDING STRETCHER - 6039805

 Features

• Fits through doorway - 670mm wide

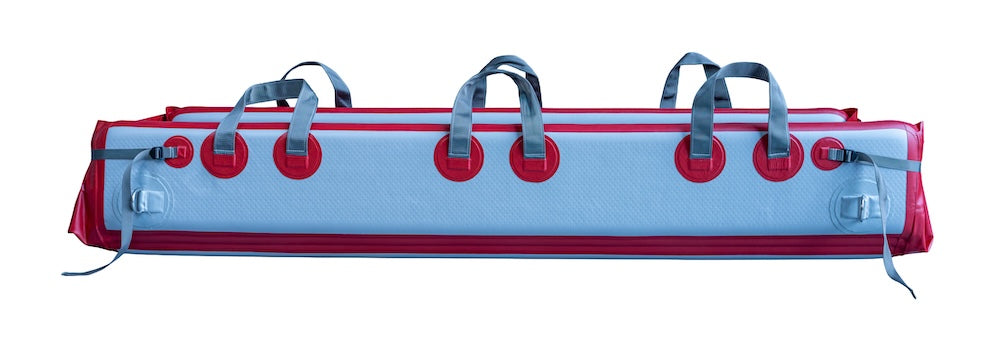

• 6 webbing carry handles
• Registered folding design can be used to scoop casualty
• Fully Inflatable - Small Pack Size and light weight

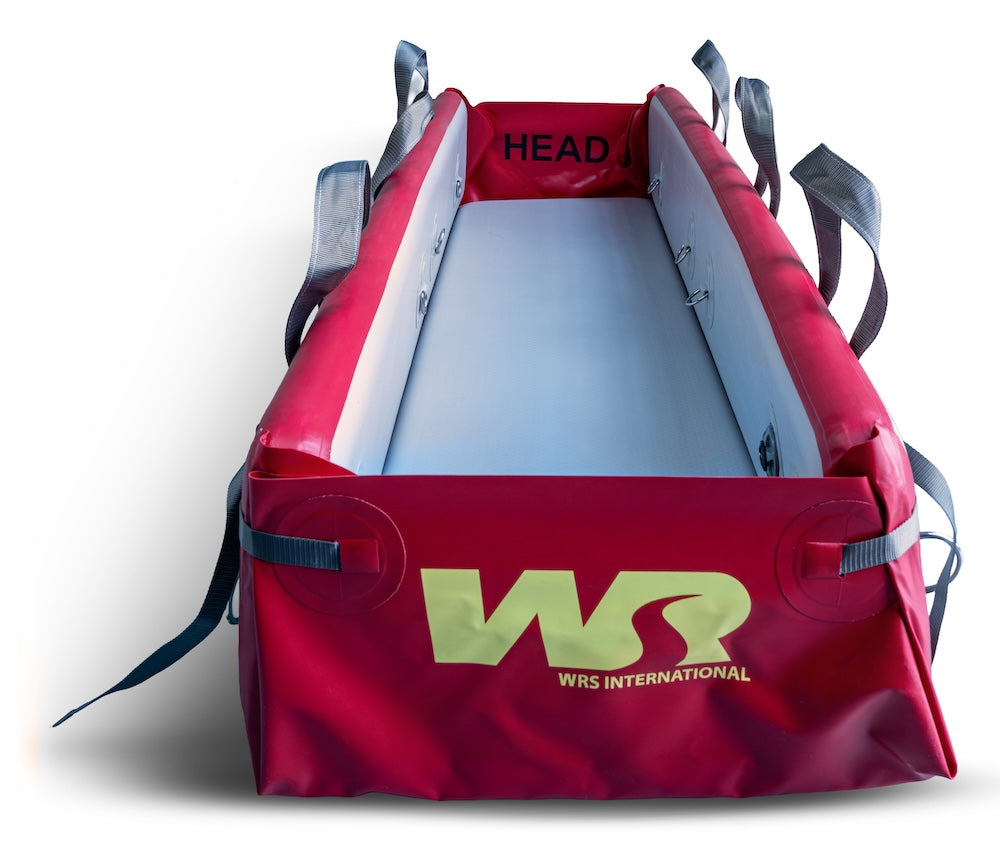

• Casualty will remain dry when sled is fully folded and sealed.

Dimensions

Length - 200 cm
Width - 67 cm
Height - 40 cm
Capacity - 160 kg
Weight - 10 kg
Pack size - 60 x 35 x 20 cm
